Analyzing Garak Results with AdversaryPilot

What is Garak?

Garak (Generative AI Red-teaming & Assessment Kit) is NVIDIA’s open-source tool for probing LLM vulnerabilities. It includes 100+ probes covering jailbreaks, prompt injection, data leakage, hallucination, and more. Garak outputs results as JSONL logs with per-probe pass/fail rates.

Garak excels at running probes. What it does not do is:

• Tell you which probes to run next based on results so far
• Calibrate results against benchmark baselines
• Map findings to compliance frameworks (OWASP, NIST, EU AI Act)
• Track Bayesian posteriors across a multi-session assessment
• Generate compliance-ready reports for stakeholders

AdversaryPilot fills this gap. Import garak results, get statistical analysis, and receive data-driven recommendations for what to test next.

How AdversaryPilot Imports Garak Results

The import command reads garak’s JSONL output and maps each probe to an AdversaryPilot technique:

adversarypilot import garak garak_report.jsonl

The importer:

1. Parses each JSONL line for probe name, result, and confidence
2. Maps the garak probe to an AdversaryPilot technique ID using the 27-probe mapping table
3. Creates AttemptResult and EvaluationResult records
4. Updates the campaign’s Bayesian posteriors with the new observations
5. Triggers family correlation updates (success on one jailbreak boosts related techniques)

27 Garak Probe-to-Technique Mappings

AdversaryPilot maps 27 garak probes to its ATLAS-aligned technique catalog:

Jailbreak Probes

Encoding and Bypass Probes

Prompt Injection Probes

Extraction and Leakage Probes

Hallucination and Reliability Probes

From Raw Scores to Bayesian Intelligence

Garak gives you probe-level pass/fail rates. AdversaryPilot transforms these into actionable intelligence through three layers of analysis:

Layer 1: Posterior Updates

Each imported result updates the Beta(alpha, beta) posterior for the corresponding technique:

• Success (probe passed the attack): alpha increments, shifting the posterior toward higher success probability
• Failure (probe was defended): beta increments, shifting the posterior toward lower success probability

After import, the planner’s next recommendation reflects the updated beliefs. If DAN probes succeeded, the planner may recommend related jailbreak techniques (Crescendo, PAIR) that benefit from family correlation. If they failed, it shifts attention to other surfaces.

Layer 2: Z-Score Calibration

Raw attack success rates are uninterpretable without context. AdversaryPilot calibrates garak results against published baselines from HarmBench and JailbreakBench:

Z-score = (observed_ASR - benchmark_mean) / benchmark_std

What this tells you:

A garak DAN probe that achieves 60% ASR might seem high, but if the HarmBench baseline for DAN against similar models is 55% +/- 12%, the Z-score is only 0.42 - within normal range. This prevents false alarms and focuses attention on genuinely anomalous findings.

Layer 3: Compliance Mapping

Every garak probe, once mapped to an AdversaryPilot technique, inherits the technique’s compliance references:

The compliance dashboard shows which controls are now covered by garak results and which still have gaps that need testing through other tools or manual assessment.

Step-by-Step Workflow: Garak + AdversaryPilot

# 1. Create a campaign
adversarypilot campaign new target.yaml --name "garak-assessment"

# 2. Get initial recommendations (AdversaryPilot tells you what to run)
adversarypilot campaign next <campaign-id>
# Output includes garak execution hooks:
#   Run: garak --model_type openai --probes probes.dan.Dan_6_0
#   Run: garak --model_type openai --probes probes.encoding.InjectBase64

# 3. Run the recommended garak probes
garak --model_type openai \
 --model_name gpt-4 \
 --probes probes.dan.Dan_6_0

# 4. Import results
adversarypilot import garak garak_report.jsonl

# 5. Get updated recommendations (posteriors have shifted)
adversarypilot campaign next <campaign-id>
# New recommendations account for what was learned

# 6. Repeat steps 3-5 until coverage goals are met

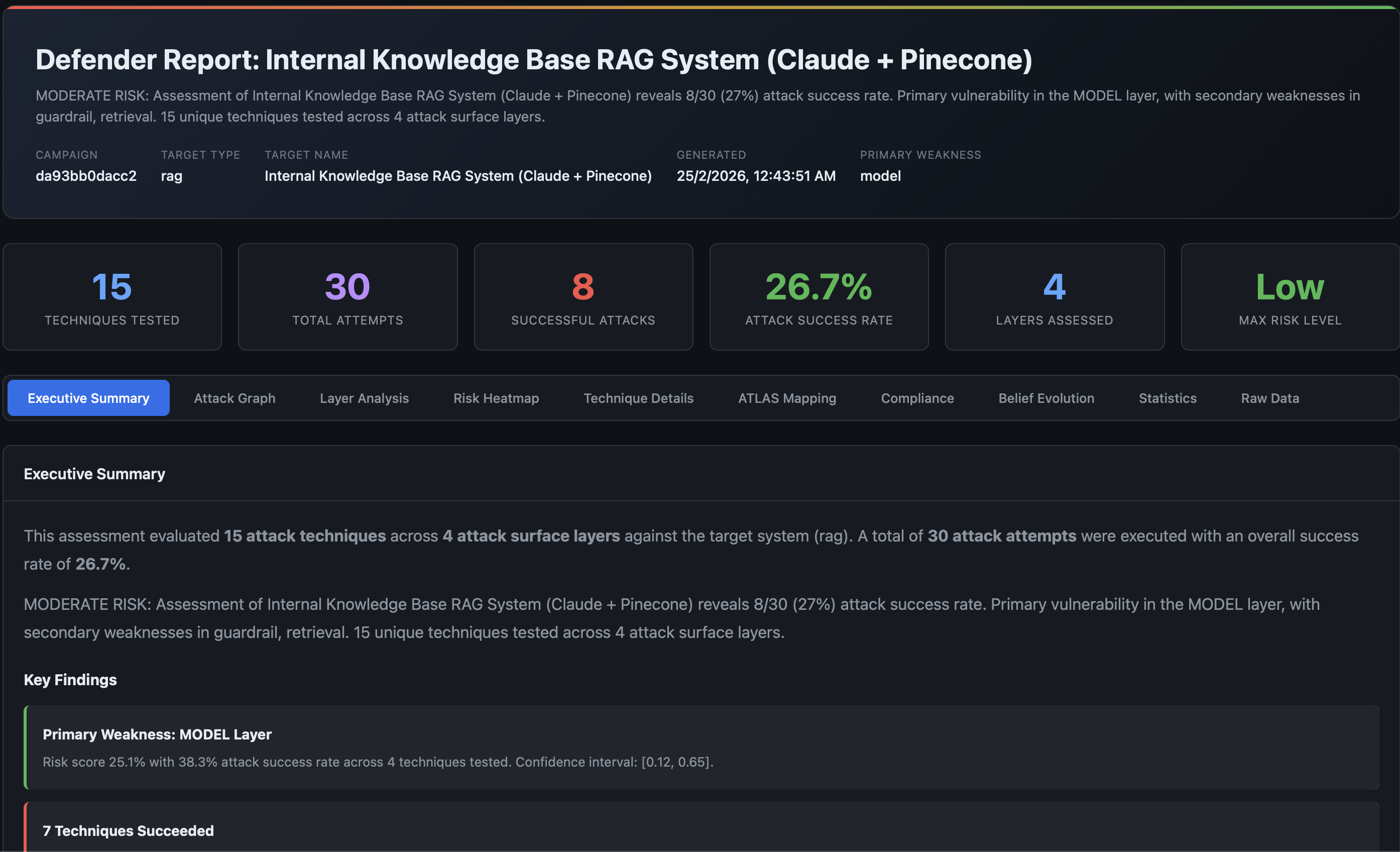

# 7. Generate the report
adversarypilot report <campaign-id>
# Produces HTML report with garak findings mapped to ATLAS + compliance

What You Get That Garak Alone Does Not Provide
